Water Treatment

Washworld provides water treatment solutions for all types and sizes of car wash applications: in-bay automatics, self serves and car wash conveyor systems. Our wide range of technologies and extended car wash know-how will guarantee you a cost-efficient solution to meet your water quality requirements.

Water Treatment

Washworld provides water treatment solutions for all types and sizes of car wash applications: in-bay automatics, self serves and car wash conveyor systems. Our wide range of technologies and extended car wash know-how will guarantee you a cost-efficient solution to meet your water quality requirements.

WATER SOFTENING

SPOT FREE/REVERSE OSMOSIS

RECLAIM

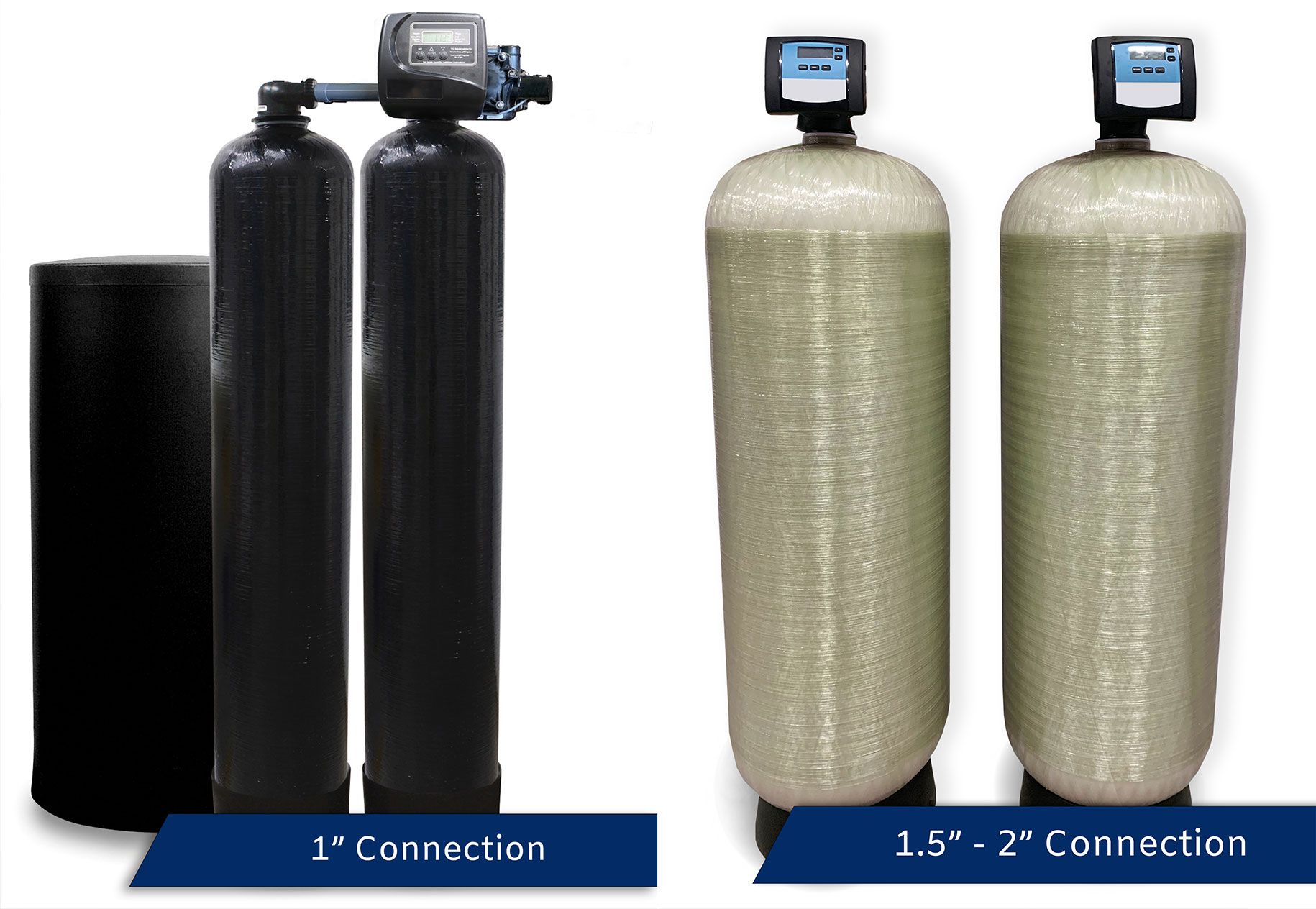

Water Softening

Our twin alternating series water softeners provide uninterrupted conditioned water 24 hours a day, 7 days a week. Designed to out-perform and outlast any system available. Let Washworld build a softening system tailored to your car washing needs.

STANDARD FEATURES

• Systems from 60,000 grain capacity (single tank) to 600,000 grain capacity (twin alternating)

• Twin alternating systems provide continuous soft water 24/7

• Clack valves

• Professional series resin tanks

• Incoming operating water- pressures from 30 -100 PSI

• Incoming operating water temperatures from 35°F - 100°F

• cETLus listed, CE compliant

• Simple, fully programmable controller maximizes efficiency and reduces operating costs

• Retains custom program settings in the event of power interruption

• Brine tanks sized to match system requirements

• Electronic control interlock for multiple tank synchronization

• Space saving footprint

• Noryl® composite valve body eliminates corrosion

• PVC hub and lateral distribution system


OPTIONAL FEATURES

• Iron filtration

• Custom, tri-plex or over-sized systems to meet your specific site needs

Water Softening

Our twin alternating series water softeners provide uninterrupted conditioned water 24 hours a day, 7 days a week. Designed to out-perform and outlast any system available. Let Washworld build a softening system tailored to your car washing needs.

STANDARD FEATURES

• Systems from 60,000 grain capacity (single tank) to 600,000 grain capacity (twin alternating)

• Twin alternating systems provide continuous soft water 24/7

• Clack valves

• Professional series resin tanks

• Incoming operating water- pressures from 30 -100 PSI

• Incoming operating water temperatures from 35°F - 100°F

• cETLus listed, CE compliant

• Simple, fully programmable controller maximizes efficiency and reduces operating costs

• Retains custom program settings in the event of power interruption

• Brine tanks sized to match system requirements

• Electronic control interlock for multiple tank synchronization

• Space saving footprint

• Noryl® composite valve body eliminates corrosion

• PVC hub and lateral distribution system


OPTIONAL FEATURES

• Iron filtration

• Custom, tri-plex or over-sized systems to meet your specific site needs

Water Softener Specs

TWIN ALTERNATING WATER SOFTENING SYSTEM SPECIFICATIONS

NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

MODEL

WW2100T-1

MODEL

WW2101T-1

MODEL

WW2102T-12

MODEL

WW2103T-15

MODEL

WW2104T-15

MODEL

WW2105T-2

MODEL

WW2106T-2

SYS.GRAIN CAPACITY

60K

SYS.GRAIN CAPACITY

150K

SYS.GRAIN CAPACITY

180K

SYS.GRAIN CAPACITY

300K

SYS.GRAIN CAPACITY

420K

SYS.GRAIN CAPACITY

300K

SYS.GRAIN CAPACITY

420K

PEAK FLOW

14 GPM

PEAK FLOW

17 GPM

PEAK FLOW

33 GPM

PEAK FLOW

62 GPM

PEAK FLOW

62 GPM

PEAK FLOW

85 GPM

PEAK FLOW

85 GPM

CU.FT. OF RESIN

2

CU.FT. OF RESIN

5

CU.FT. OF RESIN

6

CU.FT. OF RESIN

10

CU.FT. OF RESIN

14

CU.FT. OF RESIN

10

CU.FT. OF RESIN

14

MODEL: WW2100T-1

SYS.GRAIN CAPACTIY: 60K

PEAK FLOW: 14 GPM

CU.FT. OF RESIN: 2

MODEL:  WW2101T-1

SYS.GRAIN CAPACTIY:  150K

PEAK FLOW:  17 GPM

CU.FT. OF RESIN:  5

MODEL:  WW2102T-12

SYS.GRAIN CAPACTIY:  180K

PEAK FLOW:  33 GPM

CU.FT. OF RESIN:  6

MODEL:  WW2103T-15

SYS.GRAIN CAPACTIY:  300K

PEAK FLOW:  62 GPM

CU.FT. OF RESIN:  10

MODEL:  WW2104T-15

SYS.GRAIN CAPACTIY:  420K

PEAK FLOW:  62 GPM

CU.FT. OF RESIN:  14

MODEL:  WW2105T-2

SYS.GRAIN CAPACTIY:  300K

PEAK FLOW:  85 GPM

CU.FT. OF RESIN:  10

MODEL:  WW2106T-2

SYS.GRAIN CAPACTIY:  420K

PEAK FLOW:  85 GPM

CU.FT. OF RESIN:  14

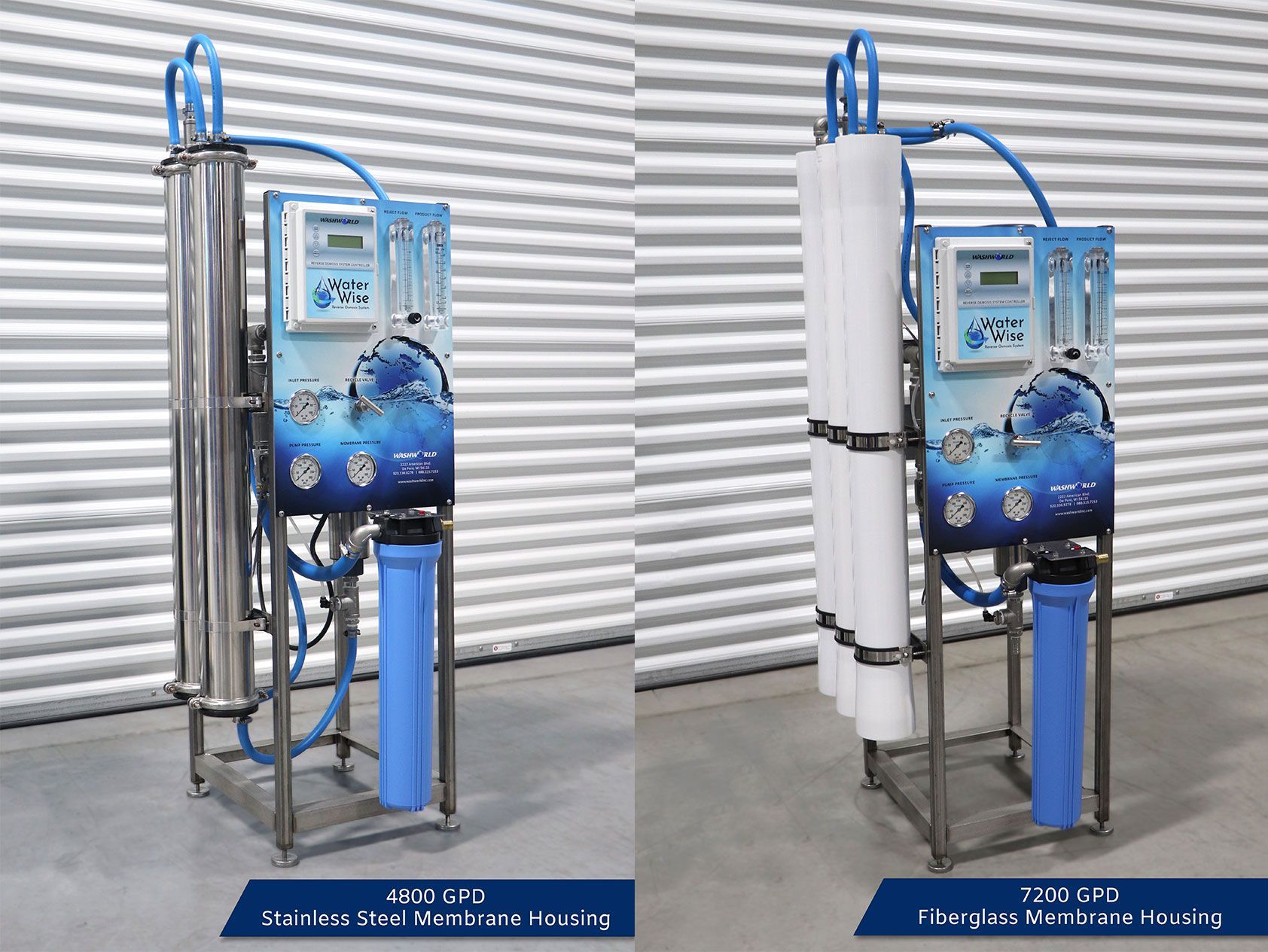

Spot Free

REVERSE OSMOSIS SYSTEMS

Washworld’s Water Wise Reverse Osmosis (R.O.) system is fully tested and manufactured for maximum efficiency. The unit features an activated carbon pre-filter tank with programmable automatic backwashing and thin-film, high-efficiency membranes in your choice of either stainless steel or fiberglass housings. The system also includes continuous electronic totally dissolved solids monitoring and can be floor standing or wall mounted. Available in sizes of 2,400 gpd, 4,800 gpd, 7,200 gpd, and 9,600 gpd and typically available for shipment within a week!

STANDARD FEATURES

• 2400, 4800 or 7200 GPD systems (Based on 77°F incoming water supply)

• Stainless steel frame

• 4”x 40” thin film high efficiency membranes

• Mounting options:

    - Adjustable feet for floor mount

    - Stainless steel wall mount bracket for (optional) mounting

• Audible and visual alerts/alarms

• Continuous electronic TDS (totally dissolved solids) monitoring

• Activated carbon pre-filter tank with programmable automatic backwashing

• VROC digital R.O. control with TDS display

• High TDS audible alarm with adjustable setting

• Large diameter, easy to read inlet, pump and membrane pressure gauges

• Durable extruded stainless steel membrane housings

• cETLus listed, CE compliant

• Automatic inlet water shut-off valve

• Permeate (product) and concentrate (reject) flow meters

• Automatic membrane flushing

• Easily replaceable 2.5” x 20” cartridge style pre-filters on all systems

• Low pressure automatic restart

• Pre-plumbed water test port


OPTIONAL FEATURES

• Water storage tanks (UV rated)

• Re-pressurization pumps with mounting brackets

Spot Free

REVERSE OSMOSIS SYSTEMS

Washworld’s Water Wise Reverse Osmosis (R.O.) system is fully tested and manufactured for maximum efficiency. The unit features an activated carbon pre-filter tank with programmable automatic backwashing and thin-film, high-efficiency membranes in your choice of either stainless steel or fiberglass housings. The system also includes continuous electronic totally dissolved solids monitoring and can be floor standing or wall mounted. Available in sizes of 2,400 gpd, 4,800 gpd, 7,200 gpd, and 9,600 gpd and typically available for shipment within a week!

STANDARD FEATURES

• 2400, 4800 or 7200 GPD systems (Based on 77°F incoming water supply)

• Stainless steel frame

• 4”x 40” thin film high efficiency membranes

• Mounting options:

    - Adjustable feet for floor mount

    - Stainless steel wall mount bracket for (optional) mounting

• Audible and visual alerts/alarms

• Continuous electronic TDS (totally dissolved solids) monitoring

• Activated carbon pre-filter tank with programmable automatic backwashing

• VROC digital R.O. control with TDS display

• High TDS audible alarm with adjustable setting

• Large diameter, easy to read inlet, pump and membrane pressure gauges

• Durable extruded stainless steel membrane housings

• cETLus listed, CE compliant

• Automatic inlet water shut-off valve

• Permeate (product) and concentrate (reject) flow meters

• Automatic membrane flushing

• Easily replaceable 2.5” x 20” cartridge style pre-filters on all systems

• Low pressure automatic restart

• Pre-plumbed water test port


OPTIONAL FEATURES

• Water storage tanks (UV rated)

• Re-pressurization pumps with mounting brackets

Reverse Osmosis Specs

SPOT FREE REVERSE OSMOSIS SPECIFICATIONS

NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

MODEL 50220040 50220041 50220042 50220045 50220046 50220047
GALLONS PER DAY 2400 4800 7200 2400 4800 7200
NO. OF MEMBRANES 1 2 3 1 2 3
MEMBRANE HOUSING Fiberglass Fiberglass Fiberglass Stainless Steel Stainless Steel Stainless Steel
PUMP H.P. 1 HP 2 HP 2 HP 1 HP 2 HP 2 HP
ELECTRICAL REQUIRED 230 VAC 1 PHASE 10 AMPS 230 VAC 1 PHASE 13 AMPS 230 VAC 1 PHASE 13 AMPS 230 VAC 1 PHASE 10 AMPS 230 VAC 1 PHASE 13 AMPS 230 VAC 1 PHASE 13 AMPS

MODEL:  50220040

GALLONS PER DAY:  2400

NO. OF MEMBRANES:  1

MEMBRANE HOUSING:  Fiberglass

PUMP H.P.:  1 HP

ELECTRICAL REQUIRED:  230 VAC 1 Phase 10 AMPS

MODEL:  50220041

GALLONS PER DAY:  4800

NO. OF MEMBRANES:  2

MEMBRANE HOUSING:  Fiberglass

PUMP H.P.:  2 HP

ELECTRICAL REQUIRED:  230 VAC 1 Phase 13 AMPS

MODEL:  50220042

GALLONS PER DAY:  7200

NO. OF MEMBRANES:  3

MEMBRANE HOUSING:  Fiberglass

PUMP H.P.:  2 HP

ELECTRICAL REQUIRED:  230 VAC 1 Phase 13 AMPS

MODEL:  50220045

GALLONS PER DAY:  2400

NO. OF MEMBRANES:  1

MEMBRANE HOUSING:  Stainless Steel

PUMP H.P.:  1 HP

ELECTRICAL REQUIRED:  230 VAC 1 Phase 10 AMPS

MODEL:  50220046

GALLONS PER DAY:  4800

NO. OF MEMBRANES:  2

MEMBRANE HOUSING:  Stainless Steel

PUMP H.P.:  2 HP

ELECTRICAL REQUIRED:  230 VAC 1 Phase 13 AMPS

MODEL:  50220047

GALLONS PER DAY:  7200

NO. OF MEMBRANES:  3

MEMBRANE HOUSING:  Stainless Steel

PUMP H.P.:  2 HP

ELECTRICAL REQUIRED:  230 VAC 1 Phase 13 AMPS
