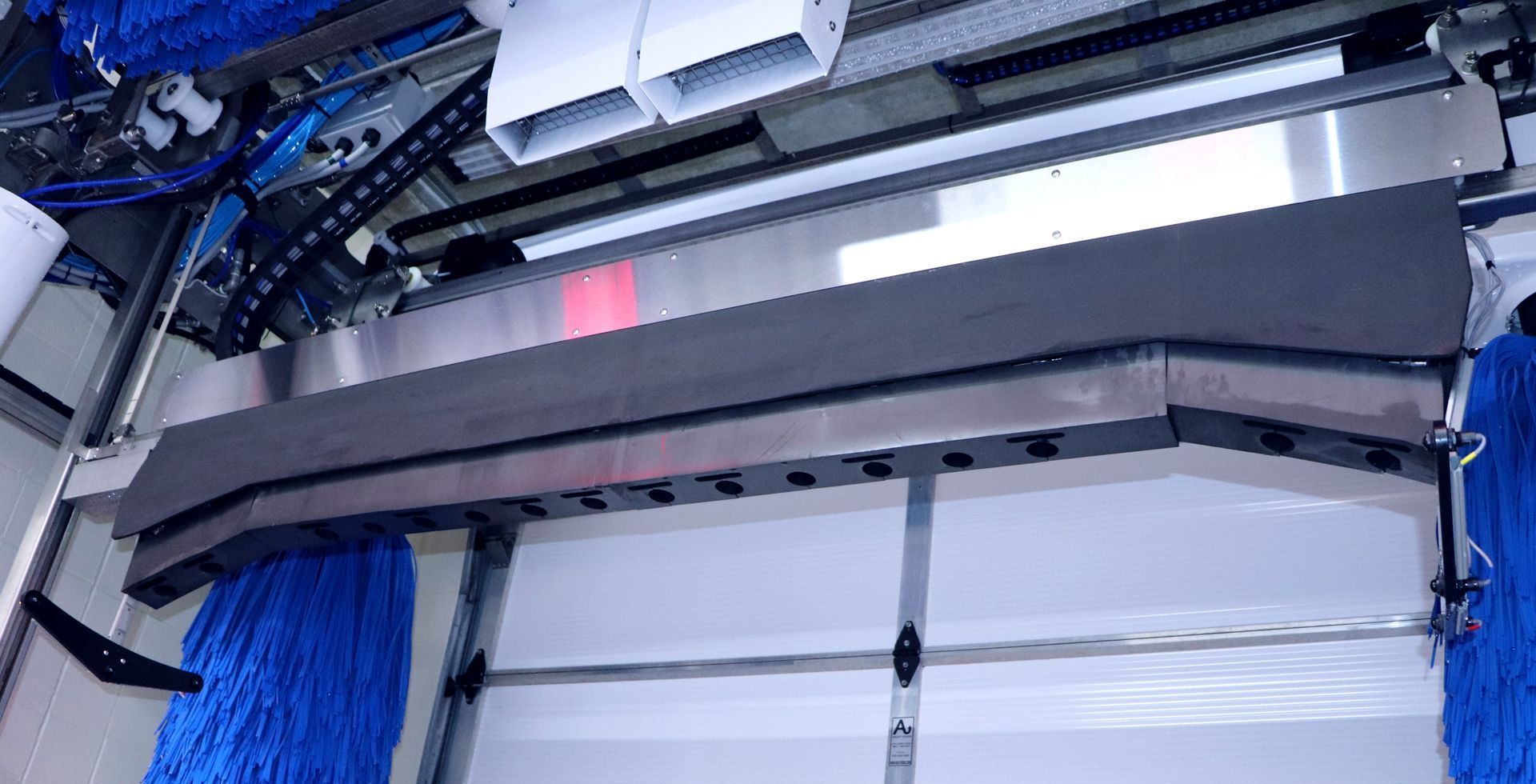

The Apex Double Barrel contouring overhead arch consists of a protective polyethylene cross-link face foam that houses the nozzles and dual overhead manifolds. A stainless steel valance conceals the top energy chain and a secondary sensor array was included for additional safety.

Apex utilizes dual overhead manifolds (low pressure and high pressure) for solution applications, high-pressure cleaning, and rinsing. Digital Surface Profile (DSP) is the advanced method of reading a vehicle’s contours and adjusting the rotation of the overhead manifold keeping it perpendicular to the vehicle surface and a prescribed distance from the vehicle resulting in optimal cleaning of front bumper/grill, windshield/mirrors, rear window visor and rear bumper.

The Apex overhead arch offers the ability to do a full contour of the vehicle down to the lowest point of the front and rear bumpers, offers triple pass technology and will even rotate to reach the back of pick-up truck windows and tailgates. Additionally, the top arch can be programmed to stay high for quick pre-soak or rinse application.

The stainless steel low-pressure manifold utilizes 10 top VeeJet nozzles for applying low-pressure pre-soak functions to all horizontal surfaces of the vehicle. The high-pressure manifold utilizes 16 top stainless steel zero degree rotating turbo nozzles.
